Fiber Laser Cutting Machine

Fiber Laser Cutting Machine

Model:
LK-S1212
Product Introduction:

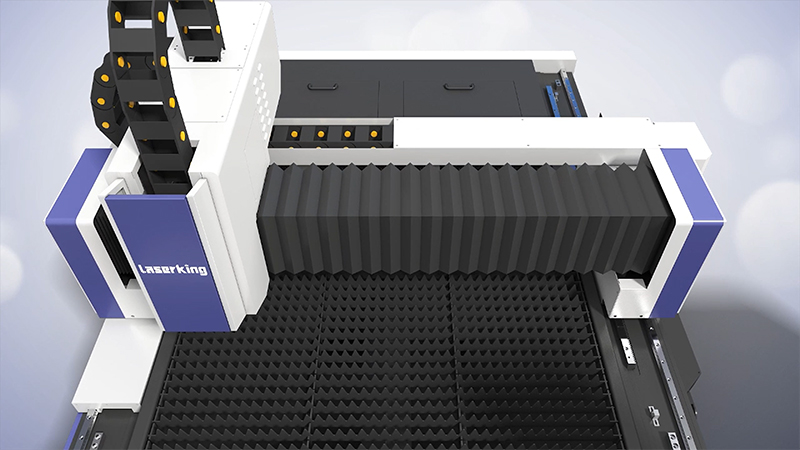

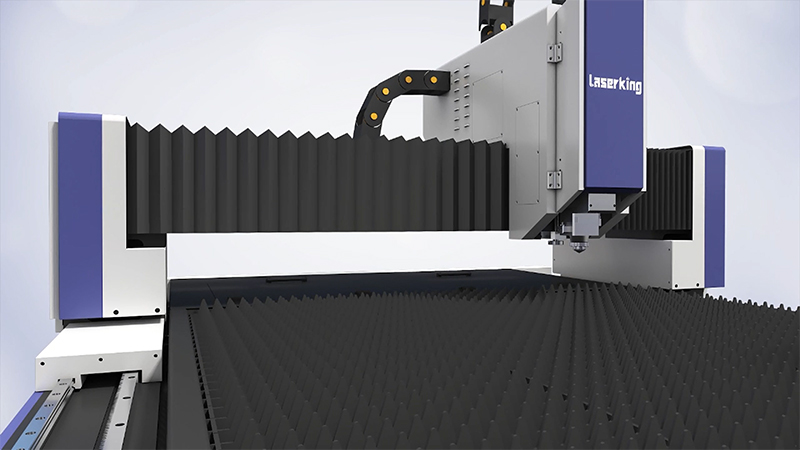

LK-S1212 is a smaller and compact laser cutting machine with open-type structure andsingle platform which can be widely used in laboratory and tiny workshop.The laser power isfrom 1.5KW to 3KW and cutting capbility is from lmm upto 20mm for carbon steel with highcutting speed.
CONTACT US
Detailed Introduction

APPLICABLE MATERIALS

Stainless steel,carbon steel,copper, alloy steel,spring steel,galvanized plate,aluminumplate,titanium alloy and other alloy plate and pipe.




FLBE LASERCUTTING MACHINE ADVANTAGES

LK-S1212 is a smaller and compact laser cutting machine with open-type structure andsingle platform which can be widely used in laboratory and tiny workshop.The laser power isfrom 1.5KW to 3KW and cutting capbility is from lmm upto 20mm for carbon steel with highcutting speed.


TECHNICALPARAMETERS
Laser Power1000-3000wNo-load speed120m/min
Laser SourceIPG/Raycus/MaxMax.Acceleration1.5G
Cutting Area

1200mm*1200mm

Max.LoadingWeight of Platform200kg
Cutting Capacity

1-25mm CS,1-20mm SS,1-16mm

AL alloy, 1-8mm brass, 1-5mm red copper

Reorientation Accuracy<士0.03mm
Dimension3700*2000*1700mmPower380V /50HZ 380V/60HZ
GeometricPositioning Accuracy≤士0.03mm/m
