LaserKing

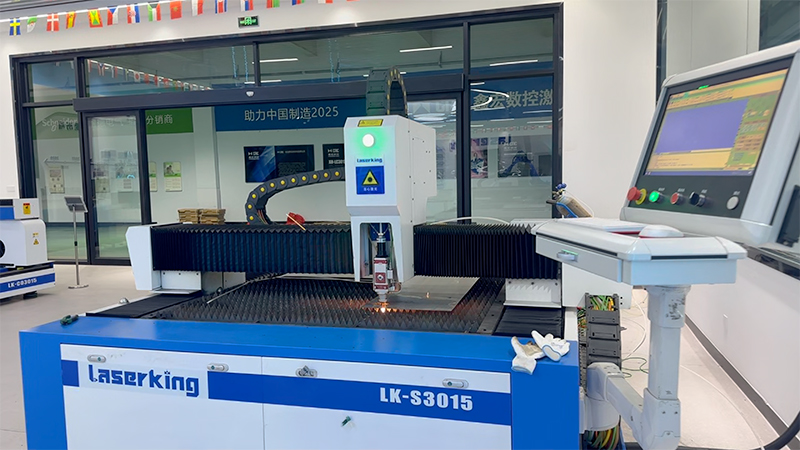

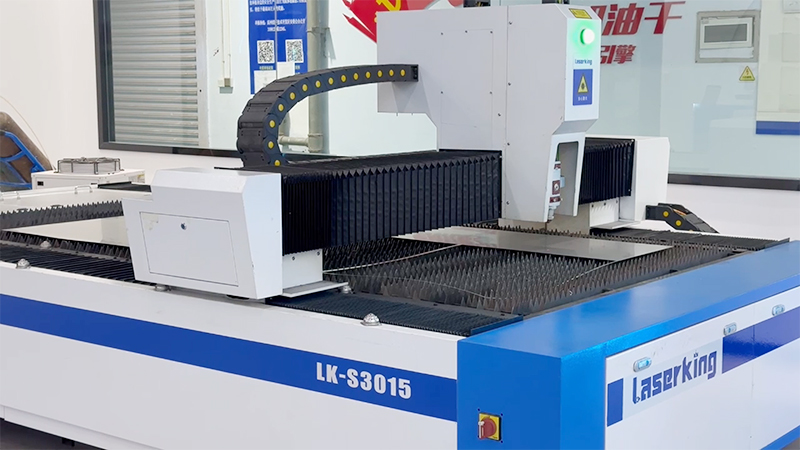

Product Introduction:: LK-S3015 is an economical single-platform fiber laser cutting machine which is the besoption for small workshop.This laser cutting machine is easy to operate for greenhands.Thelaser power is from 1.5KW to 6KW and cutting capbility is from lmm upto 25mm for carbonsteel.Stainless steel,copper,alloy steel,spring steel,galvanized plate,aluminum platetitaniumalloy are avavaible to be cutted by laser.

Detailed Introduction

TECHNICALPARAMETERS
Laser Power	1500-6000w	No-load speed	120m/min
Laser Source	IPG/Raycus/Max	Max.Acceleration	1.5G
Cutting Area	3048mm1524mm 4064mm2032mm	Max.LoadingWeight of Platform	700kg/1400kg
Cutting Capacity	1-25mm CS,1-20mm SS,1-16mm AL alloy, 1-8mm brass, 1-5mm red copper	Reorientation Accuracy	<士0.03mm
Dimension	490022501700mm	Power	380V /50HZ 380V/60HZ
GeometricPositioning Accuracy	≤士0.03mm/m	Weight	2000KG 3000KG
